Proposed set-up

(2 x 3750, stacked)

WS-C3750X-48T-S

Catalyst 3750X 48 Port Data IP Base

Options

C3KX-NM-1G

Four GbE port network module

S375XVK9T-12255SE

CAT 3750X IOS UNIVERSAL WITH WEB BASE DEV MGR

C3750X-48-IOS-S-E

C3750X-48 IP Base to IP Services factory IOS Upgrade

CAB-STACK-50CM=

Cisco StackWise 50 cm stacking cable

C3KX-PWR-350WAC

Catalyst 3K-X 350W AC Power Supply

CAB-3KX-AC-EU

AC Power Cord for Catalyst 3K-X (Europe)

WS-C3750X-48PF-S

Catalyst 3750X 48 Port PoE+ Data IP Base

Options

S375XVK9T-12255SE

CAT 3750X IOS UNIVERSAL WITH WEB BASE DEV MGR

CAB-STACK-50CM=

Cisco StackWise 50 cm stacking cable

C3750X-48-IOS-S-E

C3750X-48 IP Base to IP Services factory IOS Upgrade

C3KX-PWR-1100WAC

Catalyst 3K-X 1100W AC Power Supply

CAB-3KX-AC-EU

AC Power Cord for Catalyst 3K-X (Europe)

Required support options
  • 24x7x4 hardware support
  • Software maintenance support (i.e. always access to latest software and firmware).
  • Additionally, 2 already existing ASA5505 units will need to be incorporated in this support contract, so that we have access to up-to-date software (AnyConnect etc) as well

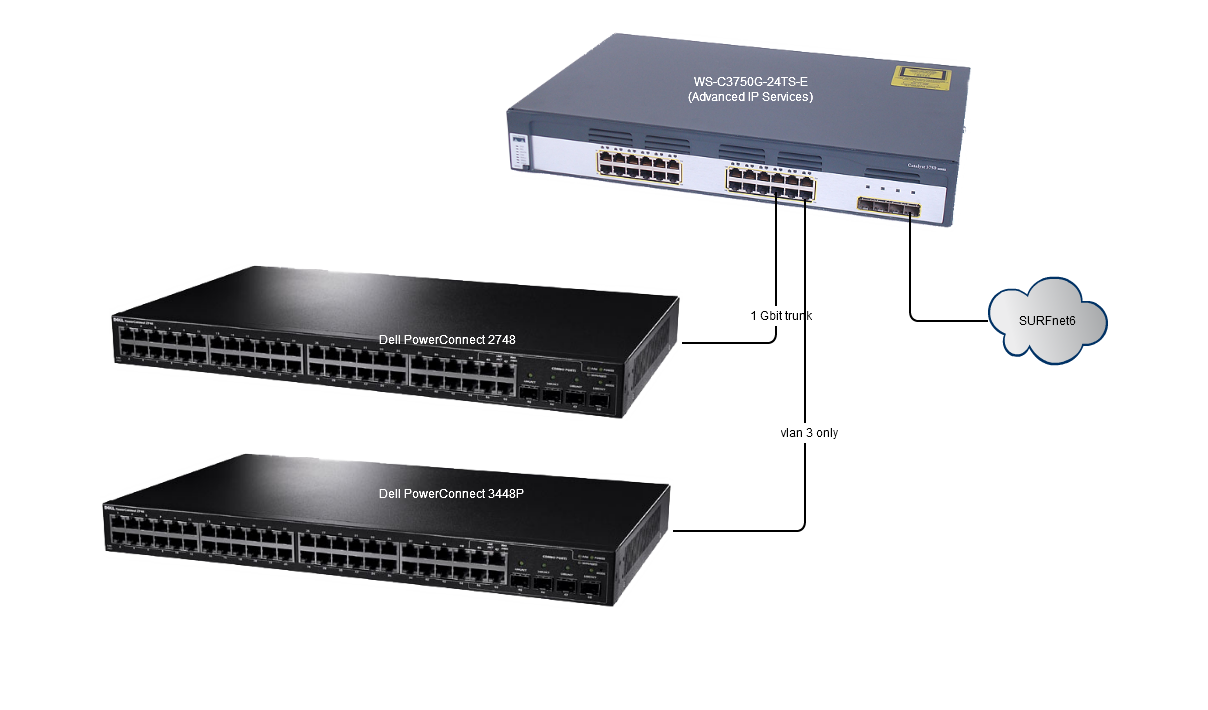

Current set-up

1x Cisco 3750
1x Dell PC2748, web managed switch
1x Dell PC3448P, unmanaged PoE switch

oldnetwork
  • No labels
